Tutorial 013 / Ableton Live

How to Make a Bass-Register Synth Horn with Ableton Wavetable — Submerged Pulse Horn

Learn how to make a bass-register synth horn in Ableton Wavetable with an octave-down sine, narrow pulse, tuned upper harmonic, moving band-pass filter and dark reverb.

4 stepsWavetableLive 12 Suite

Listen to the finished sound

Download WEBM ↓

Follow the synthesis steps in order. Use the audio examples and device settings alongside the instructions.

Step 01 / 4

Build the sub-weighted pulse horn

Begin with Wavetable in Ableton Live 12 Suite. The full chain is Wavetable → Saturator → Reverb → Utility; this first tone uses Wavetable alone. Use starting settings for the complete static sound.

Enable both oscillators and the sub. Choose the Basics category for both main oscillators.

Control Oscillator 1 Oscillator 2
Wavetable Pulse PW Basic Shapes
Position 90% 0%
Transpose 0 st +16 st
Detune 0 ct −14 ct
Gain −8 dB −21 dB
Pan Center Center
Effect mode None Modern
Modern Warp / Fold Inactive 30% / 0%

Set Sub Tone 0%, Gain 0 dB and Octave −1. The sine sub supplies the main bass weight. Oscillator 1 adds a narrow pulse edge at the played pitch. Oscillator 2 starts from a sine wave; its +16-semitone tuning puts it close to five times the sub frequency, and its -21 dB gain keeps it as colour rather than a separate lead voice. Warp adds harmonics to that quiet upper layer. This low foundation plus nasal pulse spectrum establishes the bass/horn identity before the envelope and effects move.

Use Mono, Glide 0 ms, Unison None, global Transpose 0 st and Wavetable Volume 0 dB. Unison amount and voice count do not affect the sound while unison is off.

Enable both filters with Serial routing:

Control Filter 1 Filter 2
Type Band-pass Notch
Circuit OSR Clean
Slope 12 dB 12 dB
Frequency 400 Hz 805 Hz
Resonance 0% 85%
Drive 3 dB Inactive

The 400 Hz band-pass focuses the pulse body into a horn-like midrange while the sine layer continues to anchor the lower register. The resonant 805 Hz notch removes a narrow band of upper-mid energy, softening the pulse’s harder edge without erasing its reedy character.

Set Amp Attack 24 ms, Decay 1.28 s, Sustain 0 dB and Release 3.30 s. Use Attack slope 0%, Decay and Release slopes 50%, and Loop None. Full sustain keeps a held note present; the release leaves a fading direct tone after the key is released.

In the MIDI matrix set Vel → Amp: 80, PB → Pitch: 2 st, Key → Flt 1 Freq: 70, Key → Flt 2 Freq: 100, and Press (aftertouch) → Flt 1 Freq: 8. Velocity shapes amplitude, key tracking keeps the filter balance more consistent across the keyboard, and aftertouch opens the first filter slightly. Leave the mod wheel and other MIDI routes unassigned.

For this static first stage, use Env 2 Peak 0%, with Initial, Sustain and Final also at 0%. The envelope movement is introduced in step 2. Keep global modulation amount at 100% and Time at 0%.

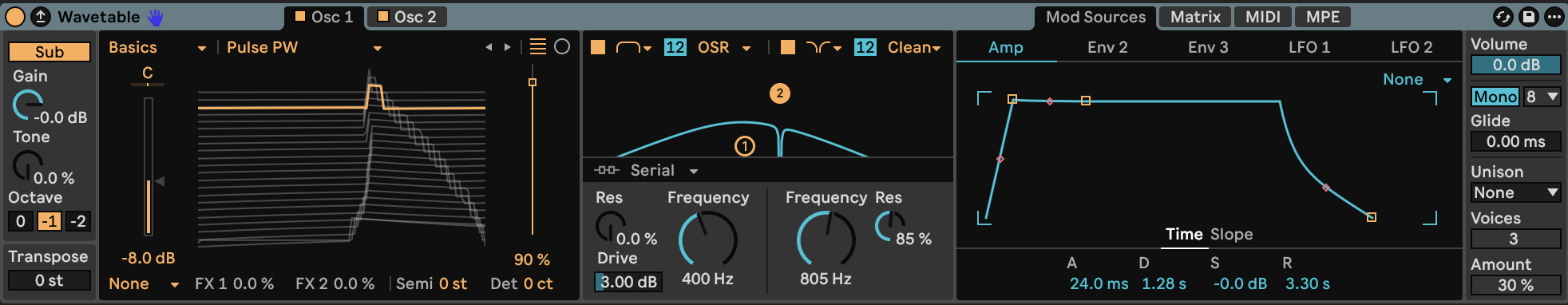

Wavetable pulse oscillator, filters and amplitude envelope
Wavetable pulse oscillator, filters and amplitude envelope · Select image to enlarge

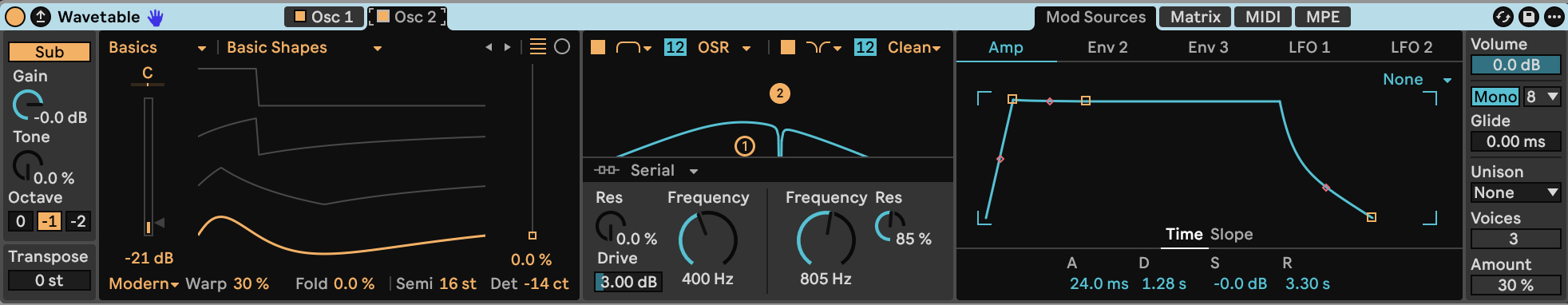

Wavetable upper harmonic and sine sub
Wavetable upper harmonic and sine sub · Select image to enlarge

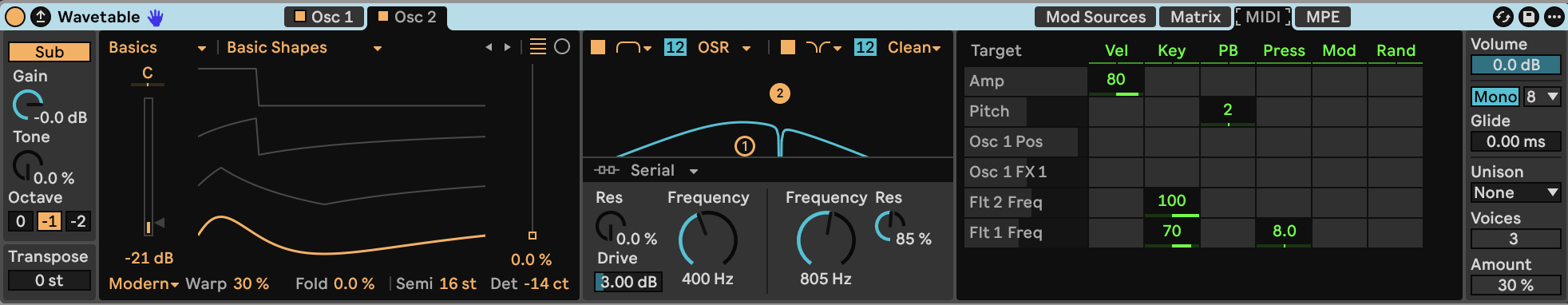

Wavetable velocity, pitch bend, key tracking and aftertouch
Wavetable velocity, pitch bend, key tracking and aftertouch · Select image to enlarge

Hear step 1 — WebM/Opus

Next: Make the band-pass swell like a sustained horn →

Step 02 / 4

Make the band-pass swell like a sustained horn

Set Env 2 Attack 510 ms, Decay 1.81 s, Release 1.35 s, Initial 0%, Peak 100%, Sustain 0% and Final 0%. Use Attack slope 0%, Decay and Release slopes 50%, and Loop None.

In Matrix, set Env 2 → Flt 1 Freq: 8. All other internal modulation routes remain zero; Env 3 and both LFOs are unassigned.

The small positive envelope amount lifts the band-pass frequency during the opening half-second, creating a restrained swell after the amplitude has already begun. It then settles into a darker sustained tone. That separation between the 24 ms amplitude attack and 510 ms filter attack is central to the horn-like articulation: short notes interrupt the colour change, while held notes reveal its full rise and fall.

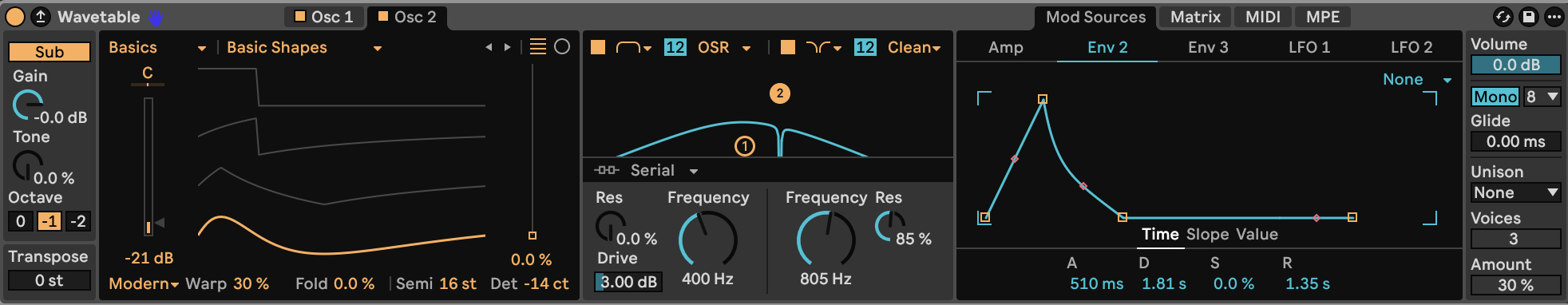

Wavetable filter envelope
Wavetable filter envelope · Select image to enlarge

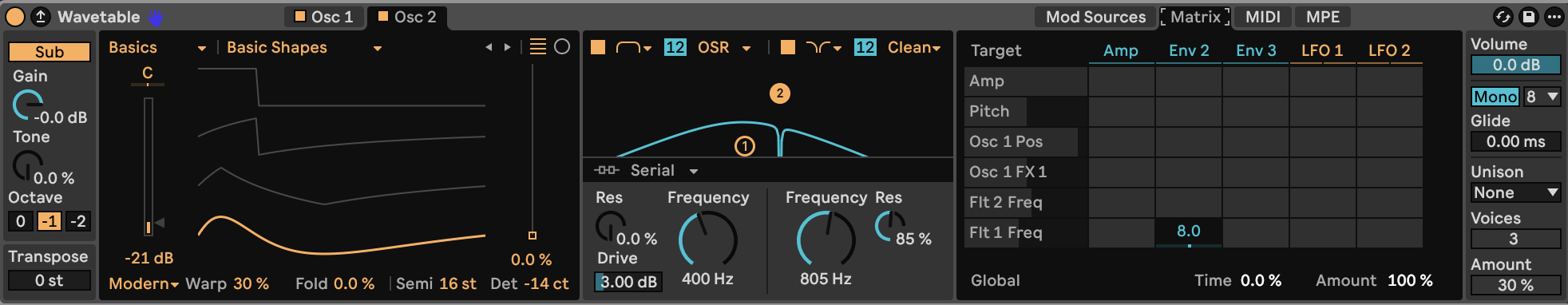

Wavetable envelope-to-filter modulation
Wavetable envelope-to-filter modulation · Select image to enlarge

Hear step 2 — WebM/Opus

Next: Round the pulse into a fuller horn tone →

Step 03 / 4

Round the pulse into a fuller horn tone

Place Saturator after Wavetable. Select Soft Sine, with Drive 3 dB, Output −3 dB and Dry/Wet 100%. Keep Color off, DC filter off and the output clipping mode at No Clip.

The Soft Sine curve rounds the pulse peaks and strengthens harmonics around the sine-heavy low body. At 100% Dry/Wet it becomes part of the instrument’s tone rather than a parallel accent, giving the bass/horn more density without introducing a hard clipped edge. The output reduction balances the added drive.

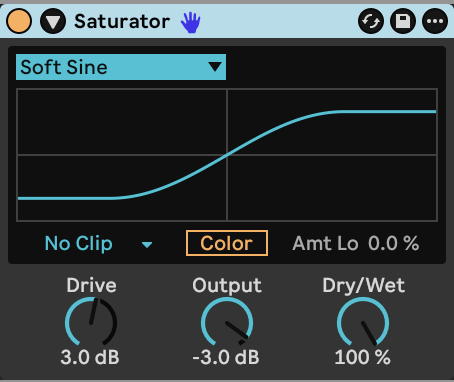

Saturator soft curve and gain settings
Saturator soft curve and gain settings · Select image to enlarge

Hear step 3 — WebM/Opus

Next: Place the bass/horn in a wide dark room →

Step 04 / 4

Place the bass/horn in a wide dark room

Follow Saturator with Reverb, then Utility.

Reverb control Value
Predelay 10 ms
Input Lo Cut / Hi Cut On / On
Input filter Frequency / Width 1.10 kHz / 4.00
Size / Smoothing 80 / Fast
Decay 9.00 s
Density High
Stereo 100
Dry/Wet 40%
Diffusion High On, Shelf, 2.50 kHz, Gain 0.60
Diffusion Low Off
Diffusion / Scale 60% / 40%
Reflect / Diffuse level 0 dB / 0 dB
Spin On, 0.30 Hz, Amount 17.50
Early-reflection Shape 0.50
Chorus On, 0.02 Hz, Amount 0.02
Freeze Off

Filtering the reverb input reduces low-frequency buildup and keeps the direct sub clearer. High-frequency damping makes the room darker as it fades.

In Utility, choose Stereo, set Width 300% and Gain +1.50 dB, and keep Balance centered. Leave Mono, Bass Mono, phase inversion, Mute and DC Filter off. The wide setting brings out the room's side information; the dry centered body remains in the middle.

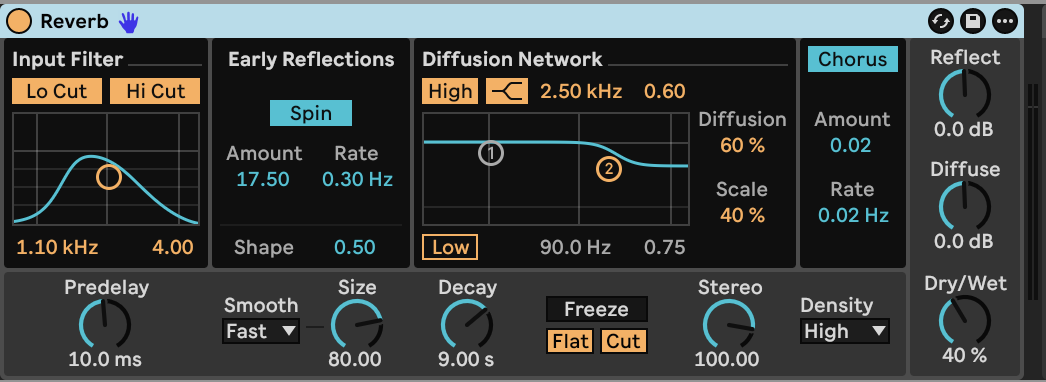

Reverb room, input filtering and damping
Reverb room, input filtering and damping · Select image to enlarge

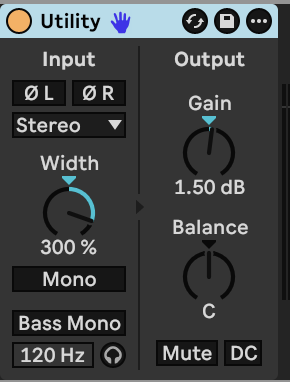

Utility stereo width and output gain
Utility stereo width and output gain · Select image to enlarge

Hear step 4 — WebM/Opus

Held notes expose the low body beneath the changing pulse colour. Short notes leave a softer, more spacious tail. Overlapping notes follow the monophonic voice, while velocity and aftertouch vary the weight and brightness.
